DIGITAL 2.4GHz Wireless CCTV Camera Converter - Wired to Wireless
|
|
![DIGITAL 2.4GHz Wireless CCTV Camera Converter - Wired to Wireless N19JN](http://www.6thplanet.com/store/product/CCTVAdapMonN19JN_l.jpg)
|
Click on any picture for a larger
view |
Digital
Wireless CCTV Camera Converter. |
Convert any wire CCTV camera into advanced digital wireless camera.
If you have an existing wired CCTV system or want to add another camera, this wireless converter is the easiest way
to give up to 200 metres** distance between your camera and monitor without having to run cables.
The wireless converter attaches to the camera to enable it to transmit video and audio via the Digital 2.4GHz frequency.

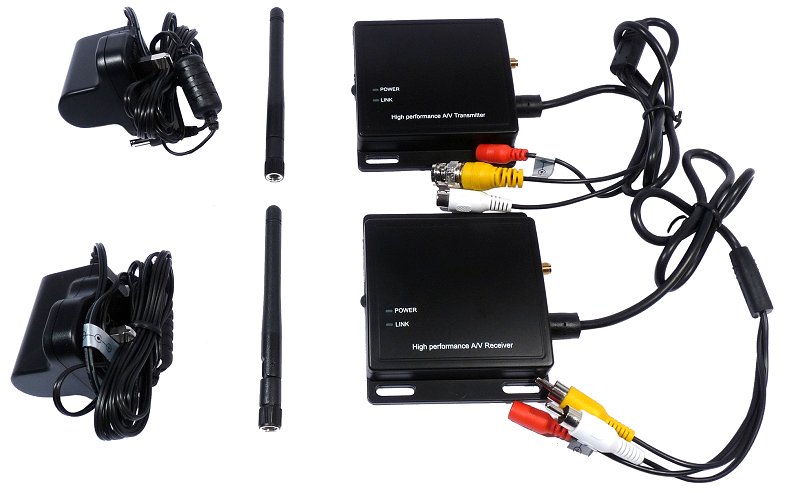

It is supplied with a transmitter and receiver, power supply and connecting cables.
|

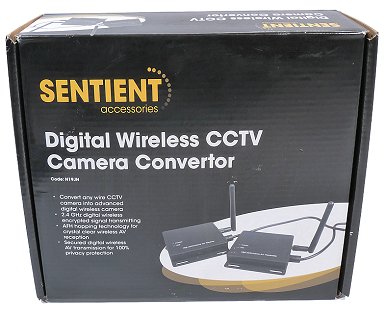

![Box - DIGITAL 2.4GHz Wireless CCTV Camera Converter - Wired to Wireless N19JN](http://www.6thplanet.com/store/product/CCTVAdapMonN19JN_box_s.jpg) |
Features
- 2.4 GHz Digital Wireless Encrypted signal transmitting
- AFH hopping technology for crystal clear wireless AV reception
- Secured Digital Wireless AV transmission for 100% privacy protection
- Plug n play installation, support up to 200m of wireless AV reception
- AV output for external TV
- Easy one key operation to single pair transmitter with receiver
- Wireless transmission in real-time frame rate up to 720 x 480
|
Normal Retail ~ £89 inc |
Specification: |
|
RF Frequency |
2.4GHz |
Modulation |
BPSK, QPSK, 16-QAM |
RF Bandwidth |
3Mbps |
Transmission Power |
16dBm |
Sensitivity |
-80dBm |
|
Transmitter |
Receiver |
Operating voltage |
5V 1A |
5V 1A |
Current Consumption |
500mA (max) |
450mA (max) |
Lithium Battery |
NA |
NA |
Selectable Camera Channel |
1CH |
1CH |
Output Image Resolution |
NA |
720 x 480 (D1) |
Frame Rate |
NA |
30fps |
Video Input/Output Level |
1Vp-p 75ohm |
1Vp-p 75ohm |
Audio Input/Output Level |
1Vp-p 600ohm |
1Vp-p 600ohm |
Input/Output Jack |
Audio in: RCA (female) |
AV Out: RCA (male) |
|
Video in: BNC |
IP Weatherproof Standards |
IP44 (Sheltered use) |
NA |
Approx. Dimension |
87*93*20mm |
87*93*20mm |
Approx. Weight |
120g (w/o antenna & cable) |
120g (w/o antenna & cable) |
Operating Temperature |
-10° ~ + 50° |
-10° ~ + 50° |
|
|
|
![Kit - DIGITAL 2.4GHz Wireless CCTV Camera Converter - Wired to Wireless N19JN](http://www.6thplanet.com/store/product/CCTVAdapMonN19JN_kit_l.jpg) |
|
|
**Note
: The stated range "XXm-transmission range in open space and clear line of sight" is the only true measurement of distance that can
be given. Passing signals through Walls and other materials is not quantifiable as the composition of the material and other factors (such
as moisture metal content of a wall) will affect the attenuation of the signal. The proximity to similar ambient frequencies in the location
may also affect the transmission range and / or signal quality.
Digital transceivers are better at eliminating noise but still require a basic good quality signal.
Examples -
- Plasterboard partition walls are commonly backed with Aluminium foil as a damp proofing which
will block wireless signals 100%.
- Passing through a wall obliquely can double its effective thickness and it's also not difficult
unwittingly to position the console such that the signal may need to pass along the whole length of a wall (eg placed on a window sill),
a situation that may sometimes give zero reception even in a room which has otherwise acceptable or good reception.
- Some 'high-tech' glass is coated with a thin metallic film, for example to reduce solar glare,
may weaken or block wireless signals, Example Car electrically heated windscreen.
- Prevailing weather conditions. Most obviously, the range for good reception may be significantly
reduced during heavy rain or hail, but might also be affected to a lesser extent in other conditions such as fog.
- Objects around the console . This is especially true of metal or metal-coated objects, such
as filing cabinets, refrigerators etc, but can even include humans. Sometimes even standing near transmitter or receiver can influence
how well the signal is received.
- Interference. Other electrical appliances can generate radio signals in the same frequency
band. Sometimes this may be spill-over interference from an appliance operating on a specific nearby frequency such as a mobile or cordless
phone, Internet routers. But there are also more general radiators of radio-frequency interference such as fluorescent light fittings
or appliances like PCs with a plastic (or no!) case.
- Height relationship of the aerials. The situation where the transmitter is substantially
above the receiver unit (ie at a steep angle of elevation) should be avoided, because signal transmission won't be efficient in this configuration.
Reception is likely to be best when both aerials are at roughly the same height, or when any angle of elevation between the two is relatively
shallow. In practice, a good configuration might be for the height to be a minimum four feet, This arrangement, while by no means definitive,
should help to minimise the effects of potential obstacles such as dense vegetation, people, chain-link fences.
|
This stock is classified in ''As New'' condition, but the external packaging
may be tatty. These units are either lost in transit or user 7 Day returns (usually because customer has ordered wrong thing, or has
been sent wrong item or item missing from box....) All items are retested, re-inspected, any missing items replaced and repacked to
ensure they are in ''As New'' condition.
We offer a 90 Day RTB Warranty on this item.
|
A Vat invoice will be provided with Vat Shown separately. |
Ref : CCTVAdapMonN19JN |
EAN 5026686082043 |
|
