12 Volt Heater & Thermostat
for CCTV camera enclosure.
|
| |
|
|
|
Prepare for Winter,
Do you have fogging CCTV Pictures before the sun gets up? Maybe the Heater
in you camera enclosure has failed. This is what you need to replace a 12
volt Heater system. Or can be added to an enclosure, Locate behind the enclosure
window beneath the camera lens.
|
Technical -
see notes
- 12 Volt Heater & Thermostat
for CCTV camera enclosure.
- Complete with Thermostat PCB,

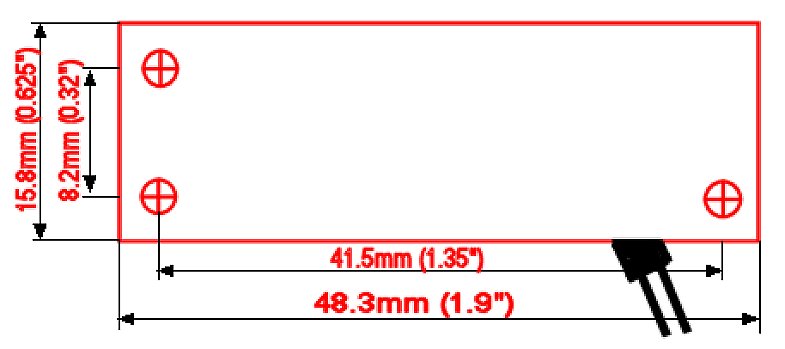

- Heater Spec -
- 49mm x 18mm x 8mm.
- Current Drawn @
12 Volts ~ 250mA1
20% (200 - 300mA)
- 3 Watts2
20% (2.4 - 3.6Watts)
- 300mm flying leads
- Used a NTC Thermistor to give
soft current start varying from 99 Ohms cold to 50 Ohms at temperature3
|
New & Unused
|
| Thermostat Rating |
| Ratings |
Version 03EN 6252 |
| VDE rated
current at 250 Vac (cos φ 0,95)
|
10A |
| VDE switching cycles |
100,000 |
| VDE temperature range Ta
|
0°C ... 150°C |
|
UL rated current at 250 Vac (cos
φ 1,0) |
10A |
| UL switching cycles |
100,000 |
| UL temperature range Ta
|
0°C ... 150°C |
| Tolerance |
Ta <100°C: ± 3 K
Ta >100°C: ± 4 K
Ta >140°C: ± 5 K |
| Contact resistance |
< 30 mΩ |
| Hysteresis / Reset temperature
|
Ta <100°C: 10 K ± 4 K
Ta >100°C: 15 K ± 5 K
Ta >140°C: 20 K ± 5 K |
| Opening Temperature |
?? |
| Closing Temperature |
?? |
| The operating temperature is unknown
as this is a custom device. |
|
1These
figures are empirical and from a small sample, not all units will be exactly
the same, a variation of approximately 20% was observed. The staring
current was about 80-120mA and slowly (hours) increased to about 200-300mA,
The unit was measured without a heat sink (free-standing) if the unit
is attached to a case as intended it will take much longer to reach working
temperature as the heat is dissipated by the case, Slow heating is the
intention of the device intending not to cause condensation that
would occur if heated rapidly.
2The
final dissipated heat is dependent on the temperature achieved, Determined
by the ambient temperature and the dissipation of the attached case /
heat sink.
3Figures
supplied for information only, Determined by the ambient temperature and
the dissipation of the attached case / heat sink.
|
|
|
|
|
A Vat invoice will be provided
with Vat Shown separately. |
Ref : CCTVHeat12vTherm |
| EAN - |
|
|
