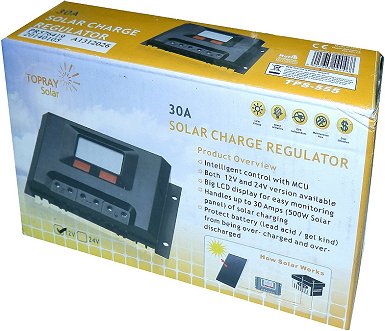

TopRay Solar TPS 1230. 30Amp, 12 Volt Solar Charge controller

Click on any picture for a larger view

A 30A charge controller designed to control the charging process from the solar panel to the battery as well as the power drawn from the battery to feed the outputs. All solar panels generally require a voltage controller to ensure that the battery is not overcharged. The charge controller is an electronic controller that switches on the connection to the batteries solar cells if the battery is empty and switches off again when the battery is fully charged.
It provides over-charging, over-discharging, short circuit, over-load and reverse polarity protection, therefore ensuring your solar system works at best capacity. This solar charge controller uses the latest Microcomputer-chip for intelligent control and a PWM (pulse width modulation) charging circuit is used efficiency.

12V 30A Solar Charge Controller Features

Regulates the charging and discharging cycles of 12V batteries**

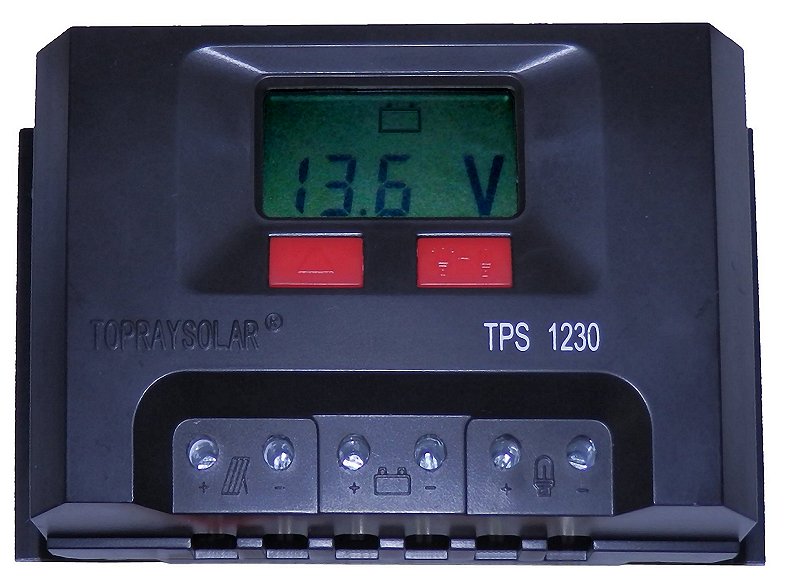

Large LCD screen for easy reading of -
- Battery Voltage
- Solar Charge current
- Battery Charge / Discharge current
Fixing holes to permanently mount the unit
Battery reverse polarity protection
Overload and overcharge protection
Battery open circuit protection
Load short circuit protection
Deep discharge protection
Suitable for loads up to 30A (500W solar panel)

Technical specifications:
Max. solar input current	30A
Max. solar voltage input	28Voc
Max. load current	30A
Over discharge voltage:	10.7V ± 0.4V
Output voltage**	DC12V**
No-load consumption	< 25mA
Voltage loss charging circuit	= 0.4V
Voltage loss of discharging circuit:	= 0.2V
Operating temperature	-25° - +40°

** 12V in this context refers to the Battery voltage of a Lead-Acid or Lead-Acid Gel Battery, The nominal voltage of a fully charges Lead-Acid battery is actually 13.5 ~ 13.8V. When being charged a Lead-Acid battery voltage can be in the region of 15Volts. Do NOT confuse with 12 Volt Regulated supplies, This is a 'Charge Controller' NOT a Regulator. Some '12volt' equipment may require further regulation before connecting to the output of this unit.
This apples to all Solar Charge controllers, not just this one.

This stock is classified as ''As New'' condition. These units are either lost in transit or user 7 Day returns. All items are fully retested, re-inspected, and repacked to ensure they are in ''As New'' condition.
We offer a 90 Day RTB Warranty on this item.

A Vat invoice will be provided with Vat Shown separately.	Ref : HoHoSolarTPS1230
	EAN 5026686090468
