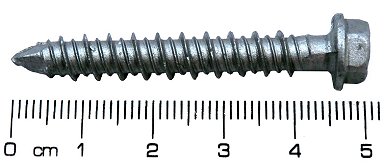

Tapcon 410 SS Masonry Anchors - Premium masonry anchor that
provides the corrosion protection of 410 Stainless Steel and
the performance of the original carbon Tapcon.
Finish - 410 Stainless Steel with Silver Climaseal™

Advantages -

• 410 grade Stainless Steel for added corrosion protection.
• Fast installation ... drill a hole ... drive an anchor.
• Cuts threads into concrete, brick and hollow block.
• Available in 3/16" diameter up to 2-1/4" Long and 1/4" diameter up to 3-1/4" Long
• Reversible and removable ... can be installed close to an edge.

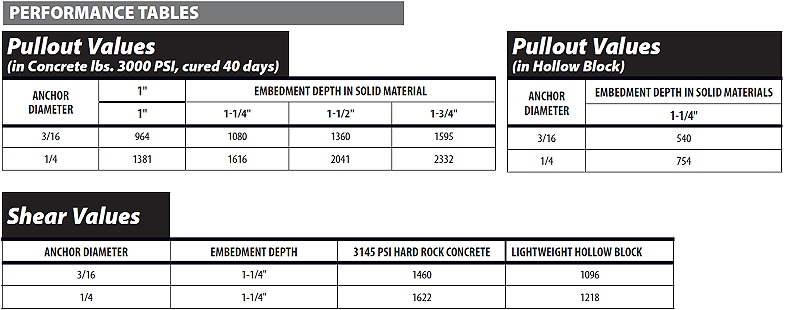

NOTE: Indicated tension and shear failure values were obtained in tests conducted at CEL Consulting. Designated holding power depends on the quality of the masonry material, depth of embedment and proper hole size. These figures are offered only as a guide and are not guaranteed in any way by Illinois Tool Works Inc (ITW). The figures indicate average ultimate tension and shear failure values. A safety factor of 4:1 or 25% of ultimate value is generally accepted as a safe working load. However, reference should always be made to applicable codes for the specific safe working ratio. All values are based on close tolerance holes drilled with Buildex Tapcon® carbide drill bits. Performance of the Tapcon anchor may vary in extremely hard concrete aggregates. Consult your Buildex representative for further information. As in the case with all applications, Buildex can only suggest typical fasteners for typical applications and that the connection design is the sole responsibility of the Building Design Engineer, Architect or otherwise responsible person charged with the design of the connection.
