OmniMount U2F Quality LCD / Plasma Fixed Wall Mount 23 to 37".



The new U2F specifically targets the growing market for mid to larger LCD panels using OmniMounts universal mounting approach. Suits 23 to 37".
These units are as New complete with all components and instructions, they were returned because of a missing screw from the fixing kit, This has been replaced and the units repacked. They are supplied in original box as pictured below but the inner packing may not be original.
Do not confuse this mount with cheaper mounts.

RRP 129.99

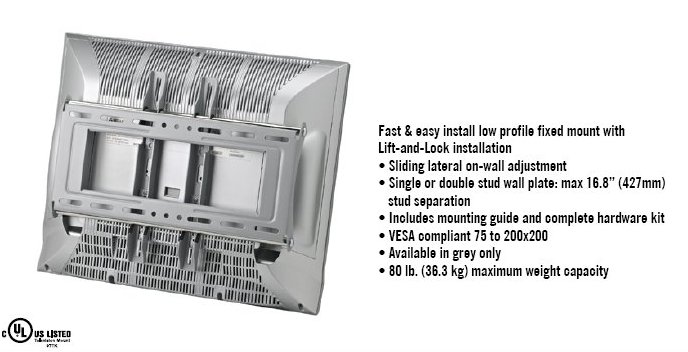

Features
  • Universal flat panel wall mount
  • Medium 23"- 37" flat panels
  • Single or double stud mounting
  • Lift n' Lock installation
  • Includes mounting guide, locking system and complete hardware

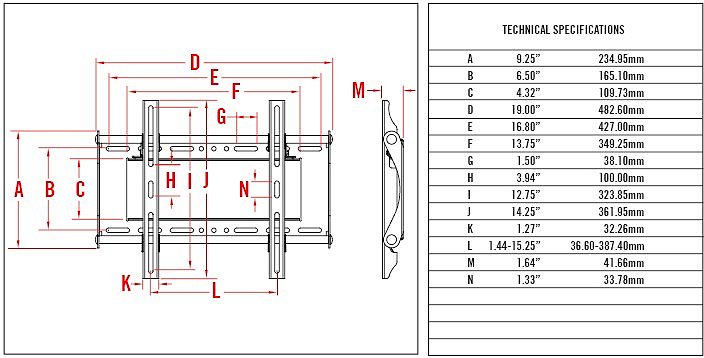

Specifications

  • +15 -5 tilt range

  • Low Profile - 41.66mm 1.64" mounting depth

  • VESA compliant: 75 to 200 x 200

  • 36.4Kg (80lb). maximum weight capacity



The following table shows some LCD & Plasma panels suitable for this mount, The 'Fixed' Column refers to the version of mount as above. The 'Tilt' Column refers to the Tilting version. Since this is a user configurable mount it will suit many other panels not listed below. The Panels shown highlighted in yellow use a VESA mounting format and are also compatible with this mount.

Click HERE to search Omnimount for Compatibility

Make Model Size Fixed Tilt Vesa ? Vesa Size Screw Fix Size Kit
Akira LT-300 30 U2F U2T   6mm x 16mm G
Akira LT-320 32 U2F U2T   6mm x 16mm G
Apex AVL-2776 27 U2F U2T VESA 100 x 100 4mm x 12mm
Apex AVL-3076 30 U2F U2T VESA 100 x 100 4mm x 12mm
Apex AVL-3278 32 U2F U2T   4mm x 12mm
Audiovox FP3000WS 30 U2F U2T
Audiovox FPE-2705 27 U2F U2T VESA 100 x 100 4mm x 12mm
Audiovox FPE3000 30 U2F U2T
Audiovox FPE-3205 32 U2F U2T VESA 100 x 100 4mm x 12mm
Continental Edison CE26L430 26 U2F U2T
Daewoo DLA-26D1 26 U2F U2T   4mm x 12mm
Daewoo DLA-32D1 32 U2F U2T   4mm x 12mm
Daewoo DLP2622 26 U2F U2T   4mm x 12mm
Daewoo DLP32D1 32 U2F U2T   4mm x 12mm
Dell W2600 26 U2F U2T VESA 100 x 200 4mm x 12mm
Dell W3000 30 U2F U2T VESA 100 x 200 4mm x 12mm
Emprex HD-3201 32 U2F U2T VESA 100 x 200 4mm x 12mm
Epoq HTV-30A1 30 U2F U2T   5mm x 16mm D
Ferguson FL32WX2 32 U2F U2T
Ferguson FLX26WX1 26 U2F U2T
Gateway 30" 30 U2F U2T VESA 100 x 200 5mm x 16mm D
Gateway GTW-L26M103 26 U2F U2T   5mm x 16mm D
Gateway GTW-L30M403 30 U2F U2T     8mm x 35mm K
Hitachi 26HDL52 26 U2F U2T VESA 100 x 100 4mm x 12mm A
Hitachi 28LD5200 28 U2F U2T   4mm x 12mm
Hitachi 32PD3000 32 U2F U2T   6mm x 16mm G
Hitachi 32PD5000 32 U2F U2T   6mm x 16mm G
Hitachi 32PD5200 32 U2F U2T   6mm x 16mm G
Hitachi 32PD5300 32 U2F U2T   6mm x 16mm G
HP LC2640N 26 U2F U2T VESA 100 x 200 4mm x 12mm
HP LC3040N 30 U2F U2T VESA 100 x 200 4mm x 12mm
HP LC3240N 32 U2F U2T   4mm x 12mm
HP LC2600N 26 U2F U2T VESA 100 x 100 4mm x 12mm
HP LC3200N 32 U2F U2T VESA 200 x 200 4mm x 12mm
Hyundai HLT-2630 26 U2F U2T   4mm x 12mm
Hyundai HLT-2710 27 U2F U2T   4mm x 12mm
Hyundai HLT-3010 30 U2F U2T   4mm x 12mm
Hyundai HLT-3220 32 U2F U2T   4mm x 12mm
Hyundai HQL260WR 26 U2F U2T VESA 100 x 100 4mm x 12mm
Hyundai HQL320WR 32 U2F U2T VESA 100 x 100 4mm x 12mm
Iiyama L260W 26 U2F U2T
Iiyama L320W 32 U2F U2T
Iiyama L323W 32 U2F U2T
Infocus 3000I 30 U2F U2T VESA 100 x 200 5mm x 16mm D
Infocus TD30 30 U2F U2T VESA 100 x 200 5mm x 16mm D
Jenson AR3000 30 U2F U2T   5mm x 16mm D
Jenson FPE3000 30 U2F U2T   5mm x 16mm D
JVC LT-26C31 26 U2F U2T   6mm x 16mm G
JVC LT-26C31S 26 U2F U2T   6mm x 16mm G
JVC LT-26D50BJ 26 U2F U2T   6mm x 16mm G
JVC LT26E31BJ 26 U2F U2T VESA 100 x 100 4mm x 12mm
JVC LT-32C31 32 U2F U2T   6mm x 16mm G
JVC LT-32C31BUE 32 U2F U2T   6mm x 16mm G
JVC LT-32C31S 32 U2F U2T   6mm x 16mm G
JVC LT-32D50BJ 32 U2F U2T   6mm x 16mm G
JVC PD-35B50 35 U2F U2T   6mm x 16mm G
LG 26LX1D 26 U2F U2T VESA 100 x 100 4mm x 12mm
LG 26LX2D 26 U2F U2T VESA 100 x 100 4mm x 12mm
LG 26LX2R 26 U2F U2T VESA 100 x 100 4mm x 12mm
LG 32LP1D 32 U2F U2T VESA 100 x 200 4mm x 12mm
LG 32LX1D 32 U2F U2T VESA 100 x 200 4mm x 12mm
LG 32LX2D 32 U2F U2T VESA 100 x 200 4mm x 12mm
LG 32LX2R 32 U2F U2T VESA 100 x 200 4mm x 12mm
LG DU30LZ30 30 U2F U2T   4mm x 12mm
LG DU30LZ80 30 U2F U2T   4mm x 12mm
LG KU26LZ51 26 U2F U2T   5mm x 16mm D
LG L3020T 30 U2F U2T   4mm x 12mm
LG L3200AK 32 U2F U2T VESA 100 x 200 4mm x 12mm
LG RL26LZ30 26 U2F U2T VESA 100 x 100 4mm x 16mm A
LG RL30LZ50 30 U2F U2T VESA 100 x 200 4mm x 12mm
LG RM26LZ30 26 U2F U2T VESA 100 x 100 4mm x 12mm
LG RU26LZ30 26 U2F U2T VESA 100 x 100 4mm x 12mm
LG RU27KZ50 27 U2F U2T   4mm x 12mm
LG RU27LZ50C 27 U2F U2T VESA 100 x 200 4mm x 12mm
LG RU30LZ50 30 U2F U2T VESA 100 x 200 4mm x 12mm
LG RU32LZ50 32 U2F U2T VESA 100 x 200 4mm x 12mm
LG RZ26LZ50 26 U2F U2T VESA 100 x 100 4mm x 16mm A
LG RZ26LZ5S 26 U2F U2T   4mm x 12mm
LG RZ30LZ50 30 U2F U2T VESA 100 x 200 4mm x 16mm A
LG RZ32LZ5S 32 U2F U2T   4mm x 12mm
Logik LCX27WN2 27 U2F U2T
Logik LCXW30NN6 30 U2F U2T
Magnavox 26MD255V 26 U2F U2T VESA 100 x 100 4mm x 12mm
Magnavox 26MF605W 26 U2F U2T VESA 100 x 100 4mm x 12mm
Magnavox 30MF200V 30 U2F U2T   4mm x 12mm
Magnavox 32MF605W 32 U2F U2T VESA 100 x 200 4mm x 12mm
Maxent MX-27X1 27 U2F U2T VESA 100 x 100 4mm x 12mm
Maxent MX-30X1 30 U2F U2T   4mm x 12mm
Maxent MX-26X3 26 U2F U2T VESA 100 x 100 4mm x 12mm
Maxent MX-32X3 32 U2F U2T VESA 100 x 100 4mm x 12mm
Mintek DVT-263 26 U2F U2T VESA 100 x 100 4mm x 12mm
Mitsubishi LT3040 30 U2F U2T VESA 100 x 200 4mm x 12mm
Mitsubishi LT3050 30 U2F U2T VESA 100 x 200 4mm x 12mm
Mitsubishi LT3280 32 U2F U2T VESA 100 x 200 4mm x 12mm
Mitsubishi MDT321S 32 U2F U2T VESA 100 x 200 4mm x 12mm
Mitsubishi MLM300 30 U2F U2T VESA 100 x 200 4mm x 12mm
Nakamichi VU-29 29 U2F U2T
Neovia NEO-26TR 26 U2F U2T VESA 100 x 100 4mm x 16mm A
Norcent LT-2720 27 U2F U2T VESA 100 x 100 4mm x 12mm
Norcent LT-2722 27 U2F U2T VESA 100 x 100 4mm x 12mm
Norcent LT-2740 27 U2F U2T VESA 100 x 100 4mm x 12mm
NuVision NVX26HDU 26 U2F U2T VESA 100 x 100 4mm x 12mm
NuVision NVX32HDU 32 U2F U2T VESA 100 x 100 4mm x 12mm
Olevia Syntax DLT2711M 27 U2F U2T VESA 100 x 100 4mm x 12mm
Olevia Syntax DLT3212M 32 U2F U2T VESA 100 x 100 4mm x 12mm
Olevia Syntax DLT3712 37 U2F U2T VESA 100 x 100 4mm x 12mm
Olevia Syntax LT26HVE 26 U2F U2T VESA 100 x 200 4mm x 12mm
Olevia Syntax LT26HVX 26 U2F U2T VESA 100 x 100 4mm x 12mm
Olevia Syntax LT27HV 27 U2F U2T VESA 100 x 100 4mm x 12mm
Olevia Syntax LT27HVS 27 U2F U2T VESA 100 x 100 4mm x 12mm
Olevia Syntax LT27HVX 27 U2F U2T VESA 100 x 100 4mm x 12mm
Olevia Syntax LT30HV 30 U2F U2T VESA 100 x 200 4mm x 12mm
Olevia Syntax LT30HVS 30 U2F U2T VESA 100 x 100 4mm x 12mm
Olevia Syntax LT32HV 32 U2F U2T   4mm x 12mm
Olevia Syntax LT32HVE 32 U2F U2T VESA 100 x 100 4mm x 12mm
Olevia Syntax LT32HVM 32 U2F U2T VESA 100 x 100 4mm x 12mm
Olevia Syntax LT37HVE 37 U2F U2T VESA 100 x 100 4mm x 12mm
Olevia Syntax LT37HVS 37 U2F U2T VESA 100 x 100 4mm x 12mm
Packard Bell 300SW 30 U2F U2T
Philips 26PF5320/10 26 U2F U2T VESA 100 x 200 5mm x 16mm D
Philips 26PF5320/28 26 U2F U2T VESA 100 x 200 4mm x 12mm
Philips 26PF8946/12 26 U2F U2T VESA 100 x 100 5mm x 16mm D
Philips 26PF9956/12 26 U2F U2T VESA 100 x 100 5mm x 16mm D
Philips 26PF9966 26 U2F U2T VESA 100 x 100 5mm x 16mm D
Philips 26PF9986 26 U2F U2T VESA 100 x 100 4mm x 12mm
Philips 300WN5VB/27 30 U2F U2T VESA 100 x 100 5mm x 16mm D
Philips 30PF9946/12 30 U2F U2T   5mm x 16mm D
Philips 32PF4320/10 32 U2F U2T VESA 100 x 200 5mm x 16mm D
Philips 32PF5320/10 32 U2F U2T VESA 100 x 200 5mm x 16mm D
Philips 32PF5320/28 32 U2F U2T VESA 100 x 200 4mm x 12mm
Philips 32PF5320A/37 32 U2F U2T VESA 100 x 200 5mm x 16mm D
Philips 32PF7320/10 32 U2F U2T VESA 100 x 200 5mm x 16mm D
Philips 32PF7320A/37 32 U2F U2T VESA 100 x 200 5mm x 16mm D
Philips 32PF9630A/37 32 U2F U2T VESA 100 x 200 5mm x 16mm D
Philips 32PF9830/10 32 U2F U2T   5mm x 16mm D
Philips 32PF9956/12 32 U2F U2T   5mm x 16mm D
Philips 32PF9966/37 32 U2F U2T   5mm x 16mm D
Philips 32PF9976/12 32 U2F U2T   5mm x 16mm D
Philips 32PF9986/12 32 U2F U2T   5mm x 16mm D
Polaroid FLM2601 26 U2F U2T   4mm x 12mm
Polaroid FLM3211 32 U2F U2T   4mm x 12mm
Proton LX-32BIC2 32 U2F U2T VESA 100 x 200 4mm x 12mm
Proton LX-37AIC2 37 U2F U2T VESA 100 x 200 4mm x 12mm
Proton LX-37AIC2 37 U2F U2T VESA 100 x 200 4mm x 12mm
Proview HX-263 26 U2F U2T VESA 100 x 100 4mm x 12mm
Proview HX-303 30 U2F U2T VESA 100 x 200 4mm x 12mm
RCA LCDX2620W 26 U2F U2T   4mm x 12mm
RCA LCDX2722W 27 U2F U2T   4mm x 12mm
RCA LCDX3022W 30 U2F U2T   4mm x 12mm
Revox E-1032 32 U2F U2T
Revox E-632 32 U2F U2T
Sagem AXIUM HDL27 27 U2F U2T
Sampo LME-27XP10 27 U2F U2T   4mm x 12mm
Sampo LME-30XP10 30 U2F U2T   4mm x 12mm
Samsung LE26A41B 26 U2F U2T
Samsung LE26R31 26 U2F U2T VESA 100 x 200 4mm x 12mm
Samsung LE26R41 26 U2F U2T VESA 100 x 200 4mm x 12mm
Samsung LE26R51 26 U2F U2T VESA 100 x 200 4mm x 12mm
Samsung LE32R31 32 U2F U2T VESA 100 x 200 4mm x 12mm
Samsung LE32R41 32 U2F U2T VESA 100 x 200 4mm x 12mm
Samsung LE32R51 32 U2F U2T VESA 100 x 200 4mm x 12mm
Samsung LNR2668W 26 U2F U2T VESA 100 x 200 4mm x 12mm
Samsung LNR268W 26 U2F U2T VESA 100 x 200 4mm x 12mm
Samsung LNR3228W 32 U2F U2T VESA 100 x 200 6mm x 16mm G
Samsung LNR328W 32 U2F U2T VESA 100 x 200 6mm x 16mm G
Samsung LNR329D 32 U2F U2T VESA 100 x 200 6mm x 16mm G
Samsung LNR408D 40 U2F U2T VESA 200 x 200 4mm x 12mm
Samsung LNR409D 40 U2F U2T VESA 200 x 200 4mm x 12mm
Samsung LTP266W 26 U2F U2T VESA 100 x 200 4mm x 12mm
Samsung LTP267W 26 U2F U2T VESA 100 x 200 4mm x 12mm
Samsung LW26A33W 26 U2F U2T
Samsung LW26A33WX 26 U2F U2T   4mm x 12mm
Sanyo 27IDTV 27 U2F U2T   4mm x 12mm
Sanyo CE27LC3B 27 U2F U2T   4mm x 12mm
Sanyo CE30LC3B 30 U2F U2T   4mm x 12mm
Sanyo CE30LD3B 30 U2F U2T   4mm x 12mm
Sanyo CE30LD3BK 30 U2F U2T   4mm x 12mm
Sanyo PLD-30HD3 30 U2F U2T   6mm x 16mm G
Sceptre X30SV 30 U2F U2T   4mm x 12mm
Sharp LC26ADIE 26 U2F U2T VESA 100 x 100 4mm x 12mm
Sharp LC26D4U 26 U2F U2T VESA 100 x 100 4mm x 12mm
Sharp LC26D5U 26 U2F U2T VESA 100 x 100 4mm x 12mm
Sharp LC26D6U 26 U2F U2T VESA 100 x 100 4mm x 12mm
Sharp LC26D7U 26 U2F U2T VESA 100 x 100 4mm x 12mm
Sharp LC26DA5E 26 U2F U2T VESA 100 x 100 4mm x 12mm
Sharp LC26GA3E 26 U2F U2T VESA 100 x 100 4mm x 12mm
Sharp LC26GA4E 26 U2F U2T VESA 100 x 100 4mm x 12mm
Sharp LC26GA4U 26 U2F U2T VESA 100 x 100 4mm x 12mm
Sharp LC26GA5E 26 U2F U2T VESA 100 x 100 4mm x 12mm
Sharp LC26GA5U 26 U2F U2T VESA 100 x 100 4mm x 12mm
Sharp LC26GD4U 26 U2F U2T VESA 100 x 100 4mm x 12mm
Sharp LC26GD6U 26 U2F U2T VESA 100 x 100 4mm x 12mm
Sharp LC32D4U 32 U2F U2T VESA 200 x 200 6mm x 36mm H
Sharp LC32D5U 32 U2F U2T VESA 200 x 200 6mm x 36mm H
Sharp LC32D6U 32 U2F U2T VESA 200 x 200 6mm x 36mm H
Sharp LC32D7U 32 U2F U2T VESA 200 x 200 6mm x 36mm H
Sharp LC32DA5U 32 U2F U2T VESA 200 x 200 6mm x 36mm H
Sharp LC32G4U 32 U2F U2T VESA 200 x 200 6mm x 36mm H
Sharp LC32GA3E 32 U2F U2T VESA 200 x 200 6mm x 36mm H
Sharp LC32GA4E 32 U2F U2T VESA 200 x 200 6mm x 36mm H
Sharp LC32GA5E 32 U2F U2T VESA 200 x 200 6mm x 36mm H
Sharp LC32GA5U 32 U2F U2T VESA 200 x 200 6mm x 36mm H
Sharp LC32GD1E 32 U2F U2T VESA 200 x 200 6mm x 36mm H
Sharp LC32GD4U 32 U2F U2T VESA 200 x 200 6mm x 36mm H
Sharp LC32GD6U 32 U2F U2T VESA 200 x 200 6mm x 36mm H
Sharp LC32GDIE 32 U2F U2T VESA 200 x 200 6mm x 36mm H
Sharp LD26D7U 26 U2F U2T VESA 100 x 100 4mm x 12mm
Sharp LD26SH1U 26 U2F U2T VESA 100 x 100 4mm x 12mm
Sherwood TL-3005W 30 U2F U2T   4mm x 12mm
Sherwood TL-3205W 32 U2F U2T   4mm x 12mm
Sliding SL26KT04 26 U2F U2T
Sony KDL-L32MRX1 32 U2F U2T VESA 200 x 200 4mm x 16mm A
Sony KDL-V26A10 26 U2F U2T VESA 100 x 200 4mm x 12mm
Sony KDL-V26XBR1 26 U2F U2T VESA 100 x 200 4mm x 12mm
Sony KDL-V32XBR1 32 U2F U2T VESA 200 x 200 4mm x 16mm A
Sony KLV27HR3 27 U2F U2T   4mm x 16mm A
Sony KLV30HR3 30 U2F U2T   4mm x 16mm A
Sony KLV32M1 32 U2F U2T VESA 200 x 200 4mm x 12mm
Sony KLV32MRX1 32 U2F U2T VESA 200 x 200 5mm x 36mm E
Sony KLV-L32M1 32 U2F U2T VESA 200 x 200 4mm x 12mm
Sony KLVL32MRX1 32 U2F U2T VESA 200 x 200 5mm x 36mm E
Sony KLVS26A10 26 U2F U2T VESA 100 x 200 4mm x 12mm
Sony KLVS32A10 32 U2F U2T VESA 200 x 200 4mm x 12mm
Sony KVL32M1 32 U2F U2T VESA 200 x 200 4mm x 12mm
Sony KVL32M1S 32 U2F U2T VESA 200 x 200 4mm x 12mm
Sony V26XBR1 26 U2F U2T VESA 100 x 200 4mm x 12mm
SVA VR2600W 26 U2F U2T VESA 100 x 100 4mm x 12mm
Tatung V27CMTT 27 U2F U2T   4mm x 12mm
Tatung V30CMTT 30 U2F U2T   4mm x 12mm
Thompson 27LB120S4 27 U2F U2T
Thompson 27LB220B4 27 U2F U2T VESA 100 x 100 4mm x 12mm
Thompson 27LCDB03BBK 27 U2F U2T
Thompson 27LCDBO3B 27 U2F U2T
Thompson 30LCDB03B 30 U2F U2T
Thompson 30LCDB03BBK 30 U2F U2T
Thompson 32LB220S4 32 U2F U2T VESA 100 x 100 4mm x 12mm
Toshiba 26HL84 26 U2F U2T VESA 100 x 100 4mm x 12mm
Toshiba 26WL36PLC 26 U2F U2T   4mm x 12mm
Toshiba 27HL85 27 U2F U2T   4mm x 12mm
Toshiba 27HL95 27 U2F U2T VESA 100 x 200 4mm x 12mm
Toshiba 27HLV85 27 U2F U2T VESA 100 x 200 4mm x 12mm
Toshiba 27HLV95 27 U2F U2T VESA 100 x 200 4mm x 12mm
Toshiba 27WL46 27 U2F U2T   4mm x 12mm
Toshiba 30WL46 30 U2F U2T   4mm x 12mm
Toshiba 32HL84 32 U2F U2T VESA 100 x 100 8mm x 16mm J
Toshiba 32HLX95 32 U2F U2T VESA 200 x 200 8mm x 16mm J
Toshiba 32WL36 32 U2F U2T   4mm x 12mm
Toshiba 32WL48 32 U2F U2T   4mm x 12mm
Viewsonic N2750W 27 U2F U2T VESA 100 x 200 4mm x 12mm
Viewsonic N3000W 30 U2F U2T   4mm x 12mm
Viewsonic N3020W 30 U2F U2T VESA 100 x 100 4mm x 12mm
Viewsonic N3250W 32 U2F U2T   4mm x 12mm
Westinghouse LTV-27W2 27 U2F U2T VESA 100 x 200 4mm x 12mm
Westinghouse LTV-30W1 30 U2F U2T   4mm x 12mm
Westinghouse LTV-30W2 30 U2F U2T   4mm x 12mm
Westinghouse LTV-32W1 32 U2F U2T VESA 100 x 200 4mm x 12mm
Westinghouse LTV-32W2 32 U2F U2T   4mm x 12mm
Westinghouse W33001 30 U2F U2T VESA 200 x 200 4mm x 12mm
World of Vision 270TN01W 27 U2F U2T
Zenith L27W46 27 U2F U2T VESA 100 x 200 4mm x 36mm B
Zenith Z26LZ5R 26 U2F U2T VESA 100 x 200 4mm x 36mm B
A Vat invoice will be provided with Vat Shown separately.  Ref : HiStPlasU2Fixed37
 EAN

Info and Billing
Payment Methods

 Debit Cards - Visa Delta, Solo, Maestro, Electron
 Credit Cards -  Visa, MasterCard, AMEX
 Also Cheque with Clearance (7 to 10 Working days)



Please note: Courier services are priced for Mainland UK only,
but this does include Isle of Wight.  If you require delivery to Northern Ireland or Isle of man add £12 to delivery,
For other UK non Mainland destinations add £17 to delivery.
Items dispatched via Royal Mail are not affected.
All Worldwide destinations please ask for a Quote.
